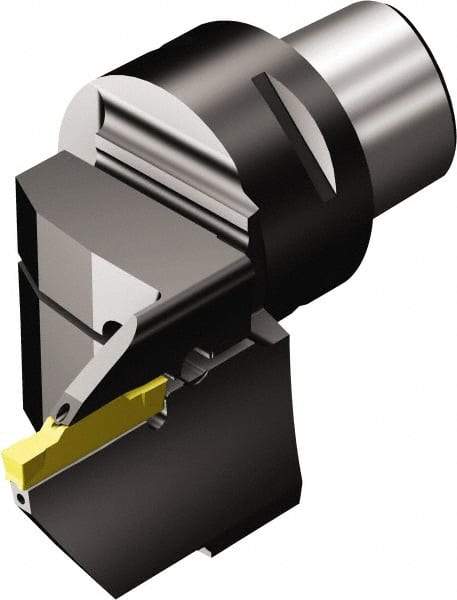

Sandvik Coromant - N123H2-0400-0004-TF Insert, 70mm Head Length, Modular Grooving Blade Holder Head - Right Hand Cut, System Size C5, Through Coolant, Series CoroCut 1-2
Item #: 49463458
Brand: Sandvik Coromant
Model #: 6798967
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroCut 1-2 |
| Cutting Direction | Right Hand |
| Modular Head Style | Blade Holder Head |
| Insert Style | N123H2-0400-0004-TF |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 33.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
