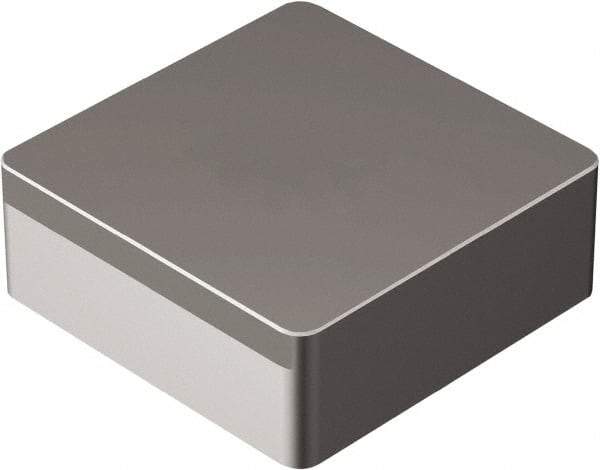

Sandvik Coromant - SNGN432 FD Grade CB50 CBN Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49456379
Brand: Sandvik Coromant
Model #: 5749667
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | SNGN |
| Insert Size | 432 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | CB50 |
| Coating | Uncoated |
| Chip Breaker | FD |
| ISO Number | SNGN120408FDCB50 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | 5749667 |
| Primary Workpiece Material | H; K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 11.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.4685 |
| Insert Holding Method | Clamp |
| Shape | Square |
