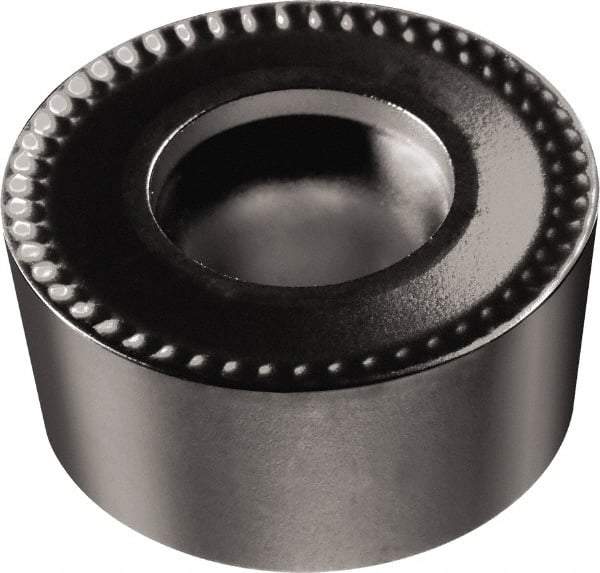

Sandvik Coromant - RCMT0502M0 RCMT Grade 1105 Carbide Turning Insert - TiAlN2 Finish, Round, 5.9mm Inscr Circle, 3/32" Thick
Item #: 49451693
Brand: Sandvik Coromant
Model #: 5740561
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0502M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 5.90 |
| Inscribed Circle (Decimal Inch) | 0.2323 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | RCMT |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | RCMT0502M01105 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5740561 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
