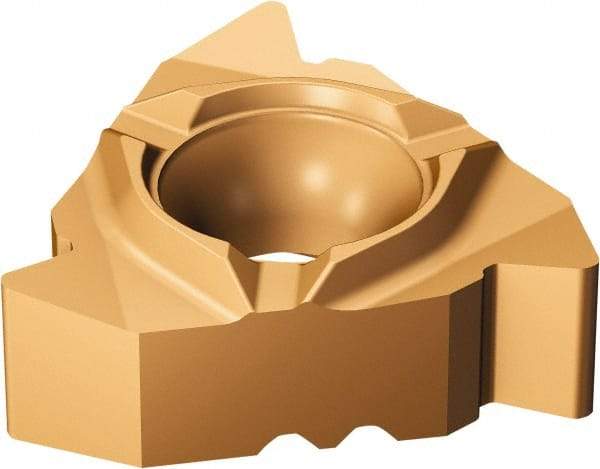

Sandvik Coromant - 26616 C Grade 1125, External Partial Profile 55° Threading Insert - 14 to 28 TPI Ext Pitch, Right Hand Insert, Carbide
Item #: 49446347
Brand: Sandvik Coromant
Model #: 5781946
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 55 Degrees |
| Manufacturer's Grade | 1125 |
| External Pitch/TPI | 14-28 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RG16VW01C001M1125 |
| Corner Radius (mm) | 0.11 |
| Corner Radius (Decimal Inch) | 0.0043 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | C |
| Manufacturers Catalog Number | 5781946 |
