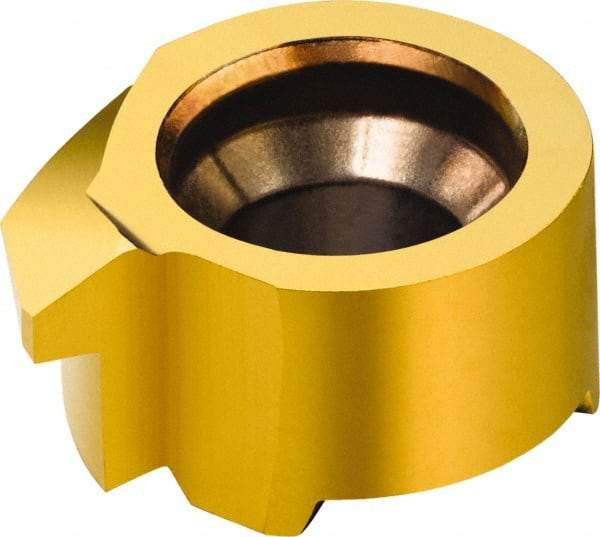

Sandvik Coromant - MB7 Grade 1025, Internal Stub Acme Threading Insert - 10 TPI Int Pitch, Right Hand Insert, Carbide
Item #: 49445992
Brand: Sandvik Coromant
Model #: 5735697
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 7 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Stub Acme |
| Manufacturer's Grade | 1025 |
| Internal Pitch/TPI | 10 TPI |
| Material | Carbide |
| ISO Number | MB07TH100SA10R1025 |
| Series | CoroCut MB |
| Included Angle of Threading Tip | 29 |
| Blade Width (mm) | 5.80 |
| Blade Width (Decimal Inch) | 0.2283 |
| Overall Length (Decimal Inch) | 0.1535 |
| Manufacturers Catalog Number | 5735697 |
| Maximum Depth of Cut (mm) | 1.04 |
| Maximum Depth of Cut (Decimal Inch) | 0.0409 |
