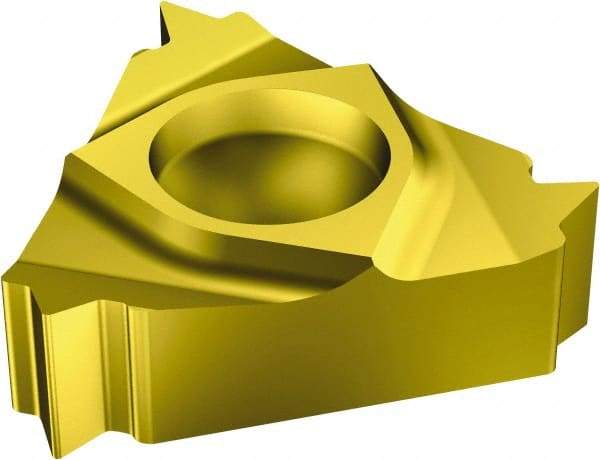

Sandvik Coromant - 166.0011 A Grade 4125, Internal Metric 60° Threading Insert - 1.5mm Int Pitch, Right Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 49445208
Brand: Sandvik Coromant
Model #: 5741990
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 166.00 |
| Insert Size | 11 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Metric 60 Degrees |
| Manufacturer's Grade | 4125 |
| Internal Pitch/TPI | 1.50 mm |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | R1660L11MM011504125 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Series | T-Max U-Lock |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5741990 |
