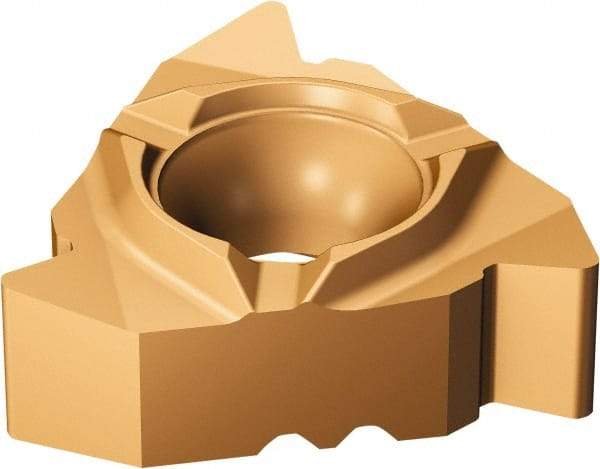

Sandvik Coromant - 26627 A Grade 1125, External API Rotary Shoulder Connections Threading Insert - 5 TPI Ext Pitch, Right Hand Insert, Carbide
Item #: 49445026
Brand: Sandvik Coromant
Model #: 5758121
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 27 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | API Rotary Shoulder Connections |
| Manufacturer's Grade | 1125 |
| External Pitch/TPI | 5 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RG27V401A0503E1125 |
| Thickness (mm) | 7.00 |
| Thickness (Decimal Inch) | 0.2756 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5758121 |
