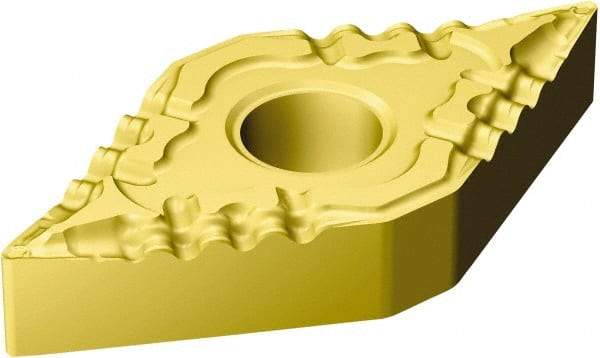

Sandvik Coromant - DNMG332 PF Grade 1525 Cermet Turning Insert - TiCN/TiN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49436314
Brand: Sandvik Coromant
Model #: 5734279
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 332 |
| Material | Cermet |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 1525 |
| Coating | TiCN/TiN |
| Chip Breaker | PF |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNMG110408PF1525 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5734279 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 10.83 |
| Maximum Depth of Cut (Decimal Inch) | 0.4264 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
