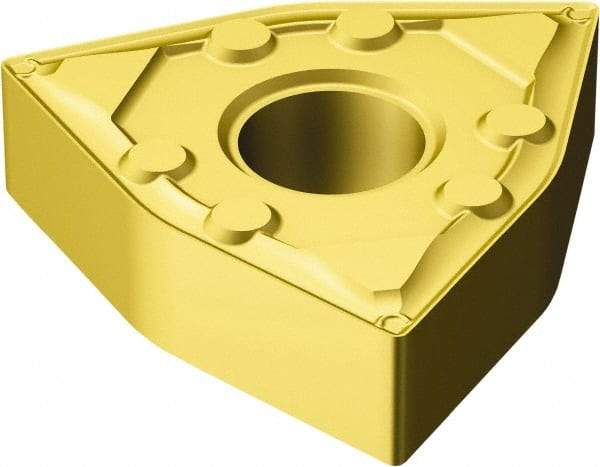

Sandvik Coromant - WNMG331 WF Grade 3005 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 1/4" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 49435910
Brand: Sandvik Coromant
Model #: 5756285
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 6.52 |
| Length (Decimal Inch) | 0.2567 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 3005 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | WF |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | WNMG060404WF3005 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5756285 |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 6.12 |
| Maximum Depth of Cut (Decimal Inch) | 0.2409 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
