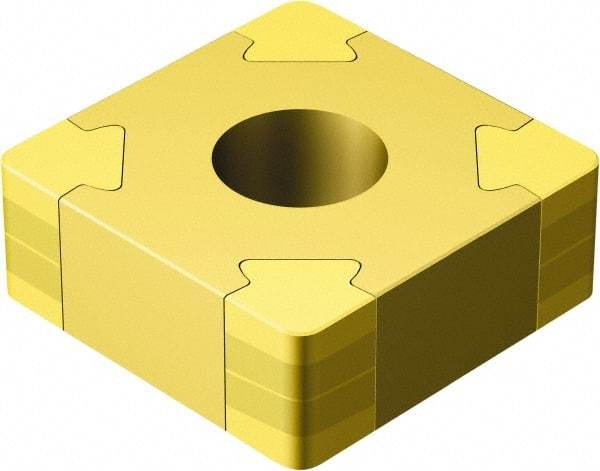

Sandvik Coromant - SNGA432 Grade 7525 CBN Turning Insert - 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49435647
Brand: Sandvik Coromant
Model #: 5908117
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | SNGA |
| Insert Size | 432 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 7525 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2032 |
| ISO Number | SNGA120408T01020B7525 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5908117 |
| Primary Workpiece Material | H; K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Negative Land |
| Shape | Square |
