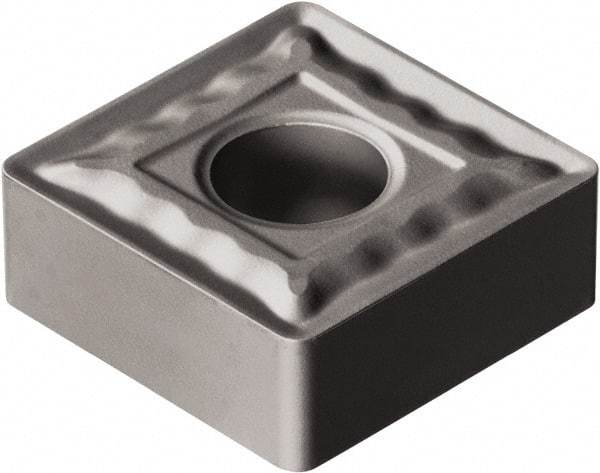

Sandvik Coromant - SNMG322 QM Grade H13A Carbide Turning Insert - Uncoated, 90° Square, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 49435597
Brand: Sandvik Coromant
Model #: 5749721
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | QM |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | SNMG090308QMH13A |
| Relief Angle | 0 |
| Manufacturers Catalog Number | 5749721 |
| Primary Workpiece Material | K; S |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 8.73 |
| Maximum Depth of Cut (Decimal Inch) | 0.3437 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
