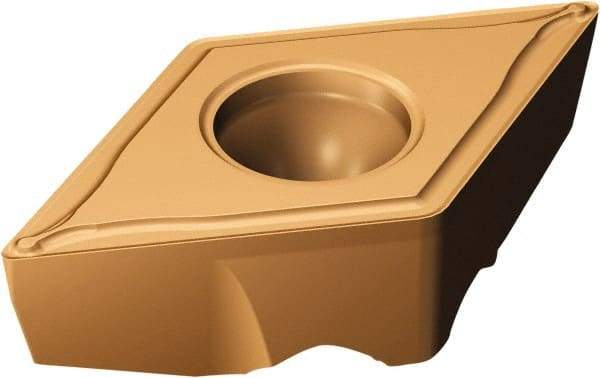

Sandvik Coromant - TRDC1304 F Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 55° Triangle, 13mm Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 49433915
Brand: Sandvik Coromant
Model #: 5755219
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TRDC |
| Insert Size | 1304 |
| Material | Carbide |
| Length (mm) | 13.00 |
| Length (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | F |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| ISO Number | TRDC1304F1115 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5755219 |
| Primary Workpiece Material | M; S |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn TR |
| Maximum Depth of Cut (mm) | 12.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.4961 |
| Insert Holding Method | Screw |
| Shape | Triangle |
