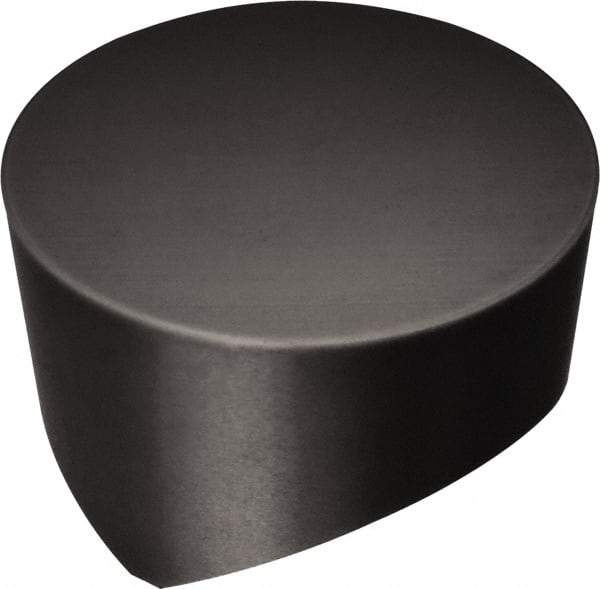

Sandvik Coromant - RCGX66.3 Grade 650 Ceramic Turning Insert - Uncoated, Round, 3/4" Inscr Circle, 10mm Thick
Item #: 49432487
Brand: Sandvik Coromant
Model #: 5740340
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 66.3 |
| Material | Ceramic |
| Inscribed Circle (mm) | 19.00 |
| Inscribed Circle (Decimal Inch) | 0.7480 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Decimal Inch) | 0.3937 |
| Thickness (mm) | 10.00 |
| Manufacturer's Grade | 650 |
| Coating | Uncoated |
| ISO Number | RCGX191000K20015650 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5740340 |
| Primary Workpiece Material | K; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Double Negative Land |
| Shape | Round |
