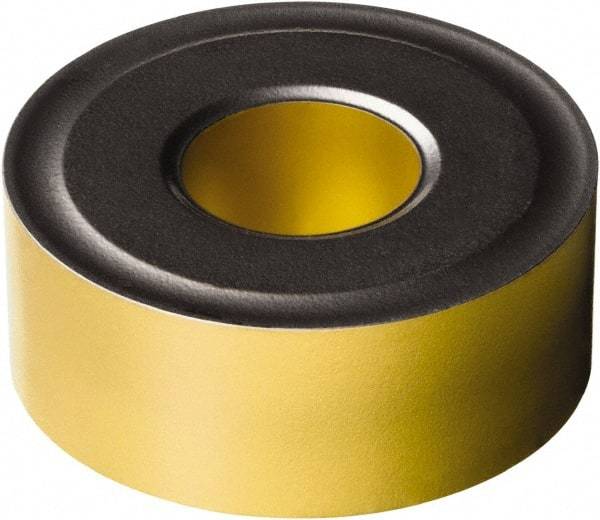

Sandvik Coromant - RNMG43 NMG Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 49432370
Brand: Sandvik Coromant
Model #: 6532306
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 43 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | NMG |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2032 |
| ISO Number | RNMG1204004325 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6532306 |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
