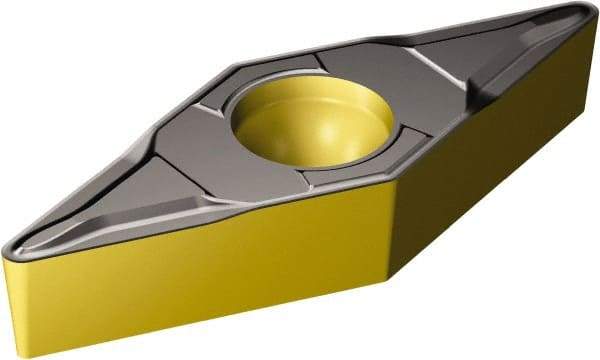

Sandvik Coromant - VBMT222 MF Grade 1105 Carbide Turning Insert - TiAlN2 Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 49432222
Brand: Sandvik Coromant
Model #: 6075380
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 222 |
| Material | Carbide |
| Length (mm) | 11.07 |
| Length (Decimal Inch) | 0.4358 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | MF |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VBMT110308MF1105 |
| Relief Angle | 5 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6075380 |
| Primary Workpiece Material | S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 10.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.4043 |
| Insert Holding Method | Screw |
| Shape | Diamond |
