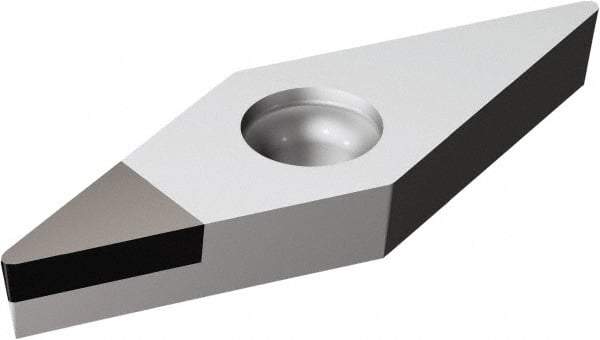

Sandvik Coromant - VCMW332 FP Grade CD05 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49431950
Brand: Sandvik Coromant
Model #: 6257293
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | VCMW |
| Insert Size | 332 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | CD05 |
| Coating | Uncoated |
| Chip Breaker | FP |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VCMW160408FPCD05 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 6257293 |
| Primary Workpiece Material | N |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Insert Holding Method | Screw |
| Shape | Diamond |
