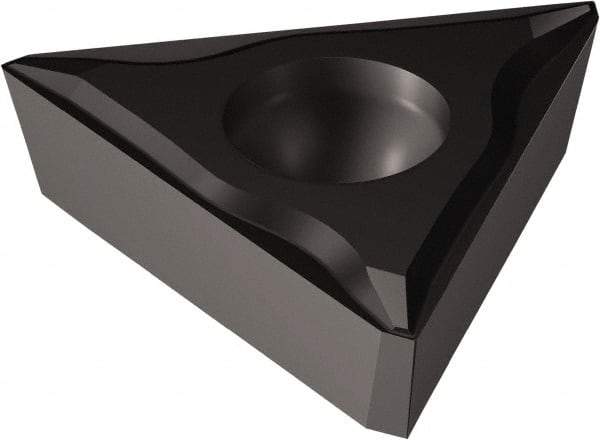

Sandvik Coromant - TCEX1103 F Grade 1105 Carbide Turning Insert - TiAlN2 Finish, 60° Triangle, 5.9mm Inscr Circle, 1/16" Thick, 0.1mm Corner Radius
Item #: 49431687
Brand: Sandvik Coromant
Model #: 6075385
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCEX |
| Insert Size | 1103 |
| Material | Carbide |
| Length (mm) | 5.57 |
| Length (Decimal Inch) | 0.2193 |
| Inscribed Circle (mm) | 5.90 |
| Inscribed Circle (Decimal Inch) | 0.2323 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0626 |
| Thickness (mm) | 1.59 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | F |
| Hole Diameter (mm) | 2.25 |
| Hole Diameter (Decimal Inch) | 0.0886 |
| ISO Number | TCEX050101LF1105 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6075385 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 5.47 |
| Maximum Depth of Cut (Decimal Inch) | 0.2154 |
| Insert Holding Method | Screw |
| Shape | Triangle |
