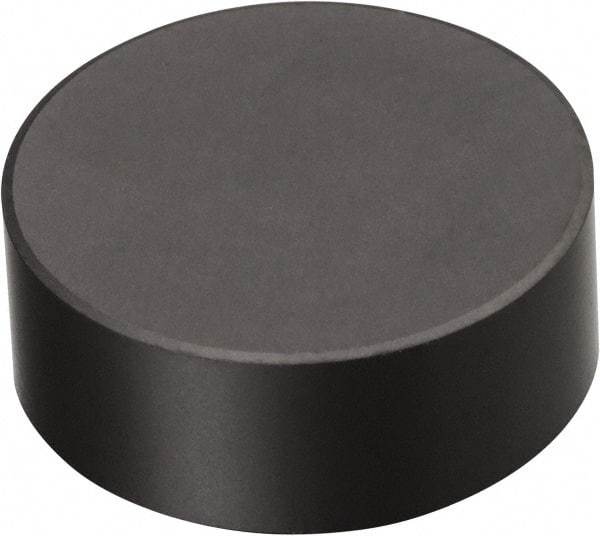

Sandvik Coromant - RNGN43 Grade 7925 CBN Turning Insert - Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 49431273
Brand: Sandvik Coromant
Model #: 5782765
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | RNGN |
| Insert Size | 43 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | 7925 |
| ISO Number | RNGN120400S02520M7925 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5782765 |
| Primary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Negative Land/ER Treated |
| Shape | Round |
