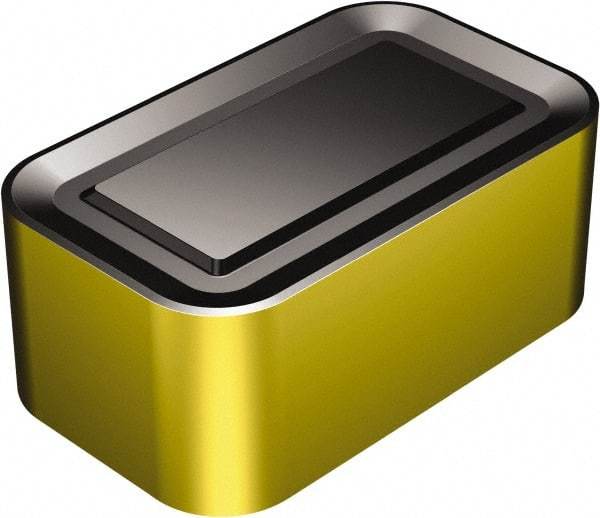

Sandvik Coromant - LNUX321248 PM Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 12mm Thick, 4.8mm Corner Radius
Item #: 49429962
Brand: Sandvik Coromant
Model #: 6639536
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNUX |
| Insert Size | 321248 |
| Material | Carbide |
| Length (mm) | 31.75 |
| Length (Decimal Inch) | 1.2500 |
| Thickness (Decimal Inch) | 0.4724 |
| Thickness (mm) | 12.00 |
| Corner Radius (mm) | 4.80 |
| Corner Radius (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PM |
| Hole Diameter (mm) | 7.92 |
| Hole Diameter (Decimal Inch) | 0.3118 |
| ISO Number | LNUX321248PM4325 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6639536 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Insert Holding Method | Pin |
| Shape | Rectangle |
