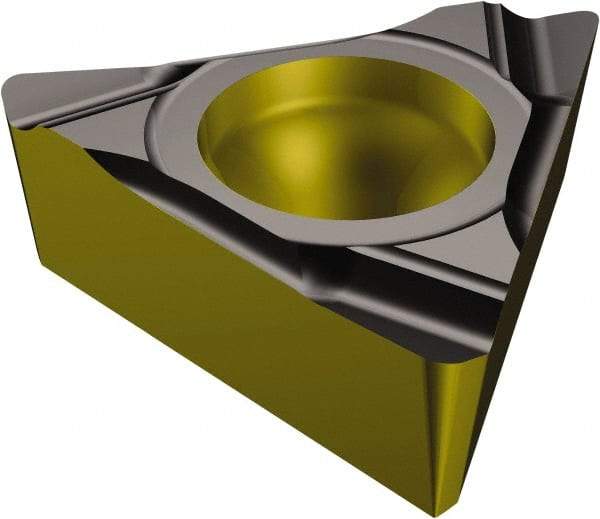

Sandvik Coromant - TCGX221 WK Grade 1515 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 49426786
Brand: Sandvik Coromant
Model #: 5752551
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGX |
| Insert Size | 221 |
| Material | Carbide |
| Length (mm) | 10.74 |
| Length (Decimal Inch) | 0.4228 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 1515 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | WK |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | TCGX110304RWK1515 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5752551 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 10.34 |
| Maximum Depth of Cut (Decimal Inch) | 0.4071 |
| Insert Holding Method | Screw |
| Shape | Triangle |
