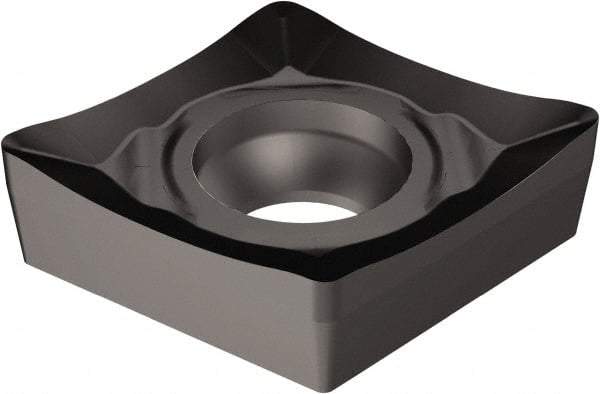

Sandvik Coromant - CCGX21.5 AL Grade 1105 Carbide Turning Insert - TiAlN2 Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 49426174
Brand: Sandvik Coromant
Model #: 6075416
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGX |
| Insert Size | 21.5 |
| Material | Carbide |
| Length (mm) | 6.45 |
| Length (Decimal Inch) | 0.2539 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | AL |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | CCGX060202AL1105 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6075416 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 6.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.2461 |
| Insert Holding Method | Screw |
| Shape | Diamond |
