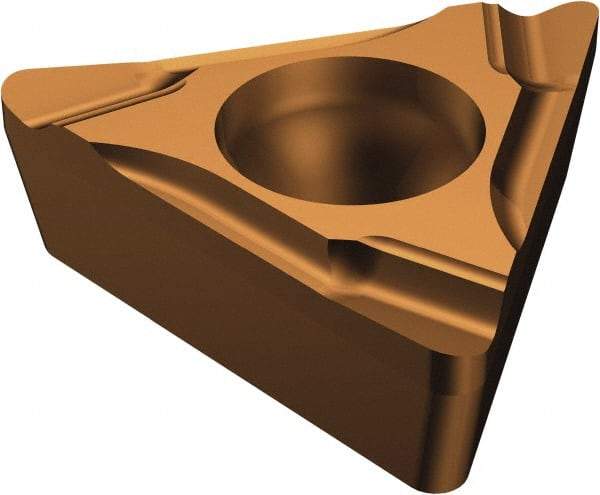

Sandvik Coromant - TCGT1.81.50 K Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 49424088
Brand: Sandvik Coromant
Model #: 5752096
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 1.81.50 |
| Material | Carbide |
| Length (mm) | 9.37 |
| Length (Decimal Inch) | 0.3689 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | K |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | TCGT090202LK1125 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5752096 |
| Primary Workpiece Material | M; S |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 9.17 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Insert Holding Method | Screw |
| Shape | Triangle |
