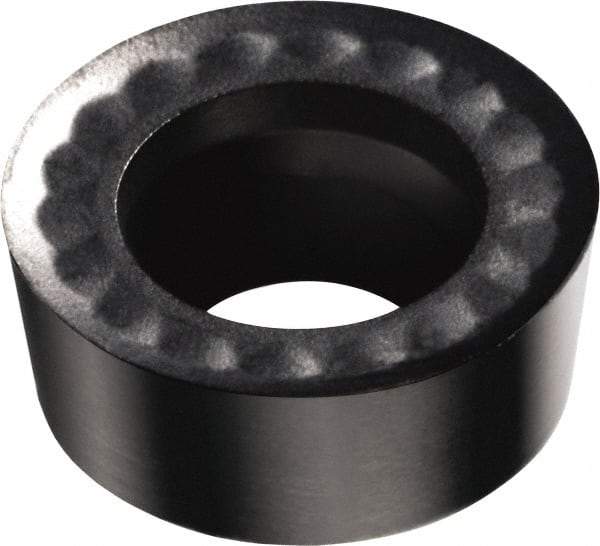

Sandvik Coromant - RCGX1204M0 AL Grade 1105 Carbide Turning Insert - TiAlN2 Finish, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 49423577
Brand: Sandvik Coromant
Model #: 6075406
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 1204M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | AL |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | RCGX1204M0AL1105 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6075406 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
