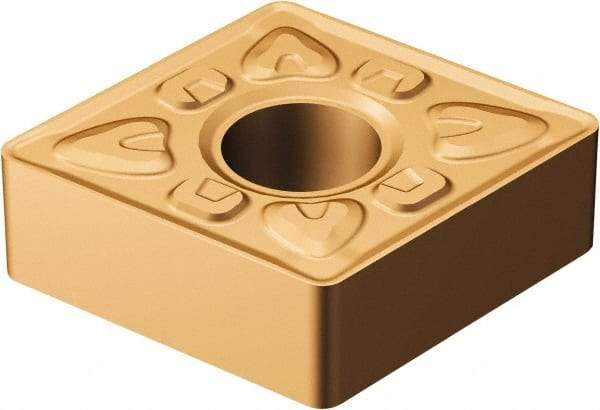

Sandvik Coromant - CNMG544 XMR Grade GC15 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 49420581
Brand: Sandvik Coromant
Model #: 6136057
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 544 |
| Material | Carbide |
| Length (mm) | 16.12 |
| Length (Decimal Inch) | 0.6346 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | GC15 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | XMR |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMG160616XMRGC15 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6136057 |
| Primary Workpiece Material | M; S |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 14.52 |
| Maximum Depth of Cut (Decimal Inch) | 0.5717 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
