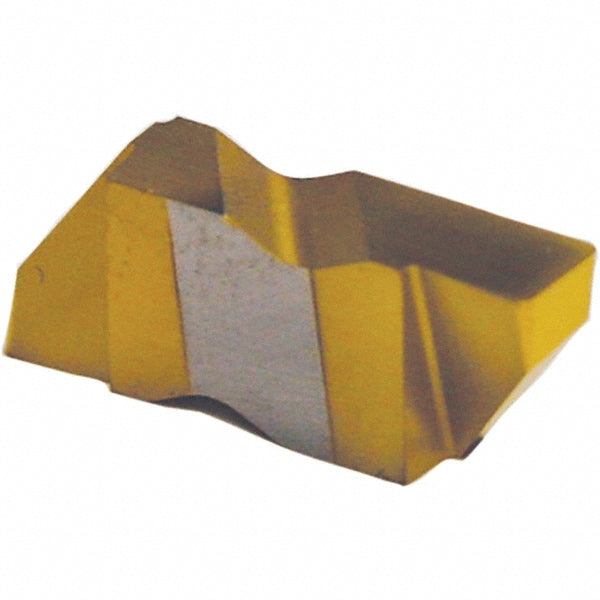

Grooving Insert: FLF3125 GP50, Solid Carbide
Item #: 04391066
Brand: Tool-Flo
Model #: 563025RN4C
Product Specifications
| Insert Style | FLF |
| Insert Size Code | 3125 |
| Cutting Width (Decimal Inch) | 0.125 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Insert Material | Carbide |
| Manufacturer Grade | GP50 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0050 - 0.0100 |
| Insert Holding Method | Clamp |
| Insert Size | 3125 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Face Grooving |
| Coating Process | PVD |
| Secondary Workpiece Material | Steel |
| Iso Code | FLF3125R |
| Manufacturers Catalog Number | FLF-3125R |
| Insert Thickness (Decimal Inch) | 0.1950 |
| UNSPSC Code | 23242105 |
| Coating/Finish | TiN |
