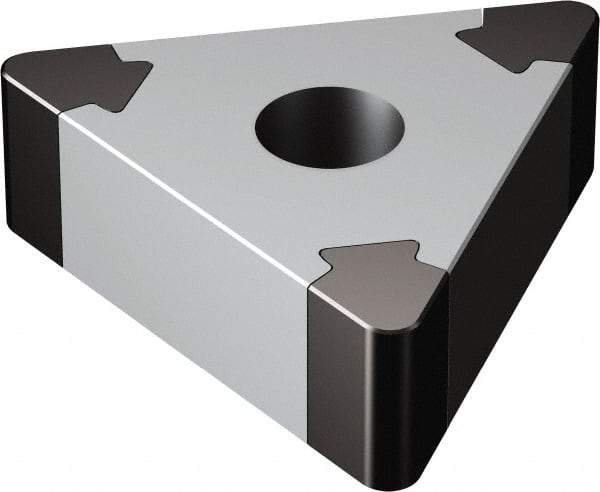

Sandvik Coromant - TNGA331 Grade 7025 CBN Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 49418825
Brand: Sandvik Coromant
Model #: 5753889
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TNGA |
| Insert Size | 331 |
| Material | CBN |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 7025 |
| Coating | Uncoated |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNGA160404S01030A7025 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | 5753889 |
| Primary Workpiece Material | H |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Negative Land/ER Treated |
| Shape | Triangle |
