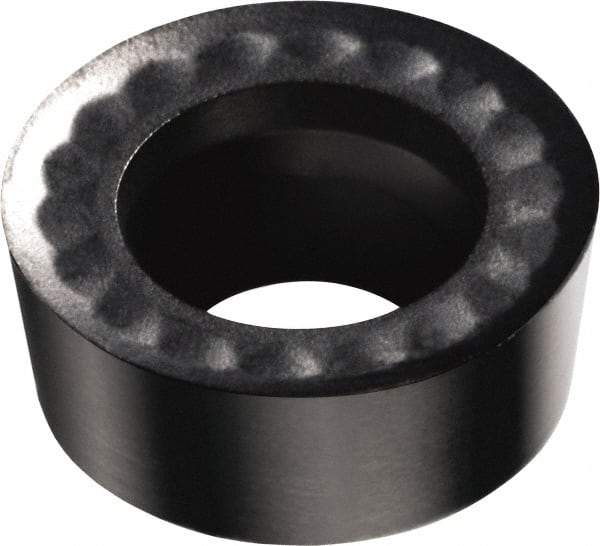

Sandvik Coromant - RCGX10T3M0 AL Grade 1105 Carbide Turning Insert - TiAlN2 Finish, Round, 10mm Inscr Circle, 5/32" Thick
Item #: 49418221
Brand: Sandvik Coromant
Model #: 6075405
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | AL |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | RCGX10T3M0AL1105 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6075405 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
