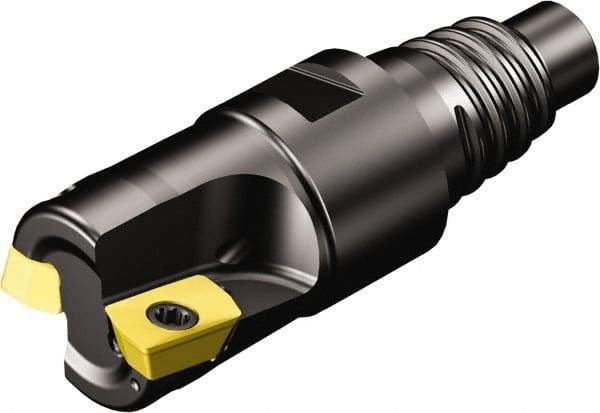

Sandvik Coromant - 2 Inserts, 1/2" Cut Diam, 31/64" Arbor Diam, 0.2283" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 0.7874" High, 390R-07.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49408743
Brand: Sandvik Coromant
Model #: 6851117
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (Decimal Inch) | 0.4843 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 0.7874 |
| Insert Compatibility | 390R-07.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum Body Diameter (Decimal Inch) | 0.4724 |
| Maximum RPM | 44500 |
| Cutting Edge Length (Decimal Inch) | 0.2283 |
| ISO Number | RA390013EH1207L |
| Complete Insert Compatibility | 390R-07.. |
| Toolholder Material | Steel |
