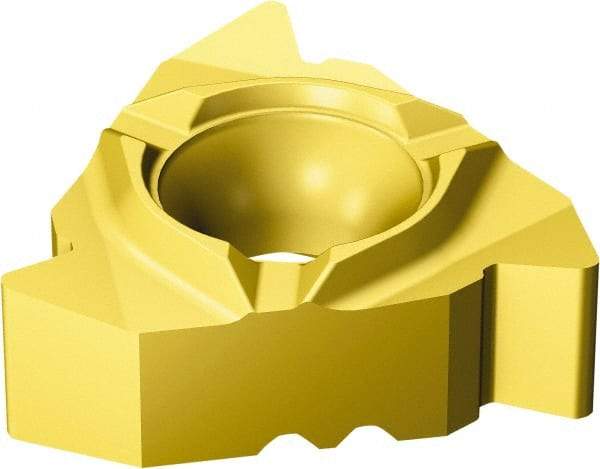

Sandvik Coromant - 26616 A Grade 1135, Internal NPT Threading Insert - 8 TPI Int Pitch, Right Hand Insert, TiN Finish, Carbide
Item #: 49408206
Brand: Sandvik Coromant
Model #: 6297197
Exact Tooling IR#: 04
Features and Benefits
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | NPT |
| Manufacturer's Grade | 1135 |
| Internal Pitch/TPI | 8 TPI |
| Coating | TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RL16NT01C080M1135 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 6297197 |
