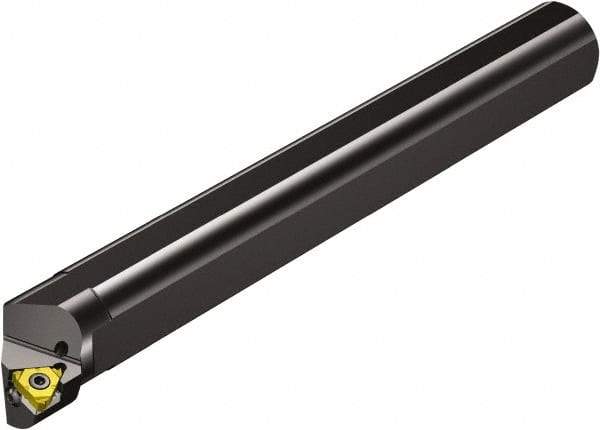

Sandvik Coromant - Internal Thread, Right Hand Cut, 1.5748" Shank Width x 1.4567" Shank Height Indexable Threading Toolholder - 11.811" OAL, Various Insert Compatibility, 266.RL Toolholder, Series CoroThread 266
Item #: 49407935
Brand: Sandvik Coromant
Model #: 5758007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Shank Height (Decimal Inch) | 1.4567 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | 266RL-16AC01F080E; 266RL-16AC01F100E; 266RL-16AC01F120E; 266RL-16AC01F140E; 266RL-16AC01F160E; 266RL-16MM01A050M; 266RL-16MM01A075M; 266RL-16MM01A100M; 266RL-16MM01A125M; 266RL-16MM01A150M; 266RL-16MM01A175M; 266RL-16MM01A200M; 266RL-16MM01A250M; 266RL-16 |
| Series | CoroThread 266 |
| Toolholder Style | 266.RL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Head Length (Decimal Inch) | 1.2402 |
| Shank Length (Decimal Inch) | 10.5709 |
| Maximum Bore Depth (Decimal Inch) | 4.7244 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Pitch Range | 64 - 8 |
| Toolholder Material | Steel |
