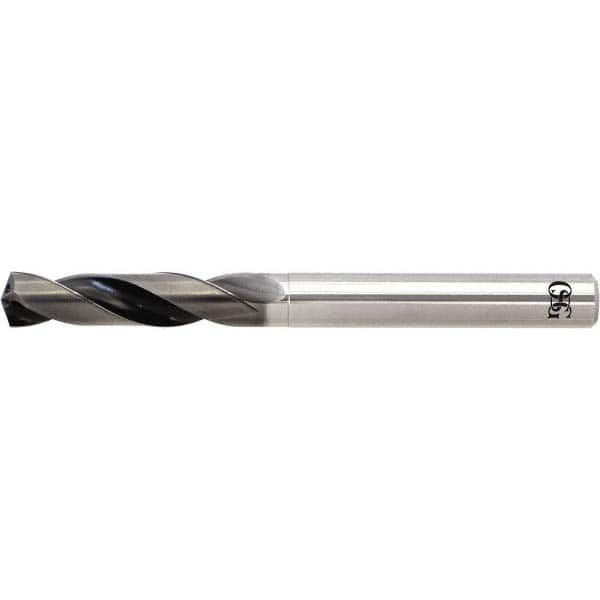

OSG - 10.1mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 36463719
Brand: OSG
Model #: 8666010
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
WXL is a nano-technological coating that has higher hardness than TiALN. It is commonly used on non-ferrous materials and hardened steels. WXL is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3976 |
| Drill Bit Size (mm) | 10.10 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | WXL |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 51.00 |
| Overall Length (mm) | 113.00 |
| Flute Length x Diameter Ratio | 3xD |
| Number of Flutes | 2 |
