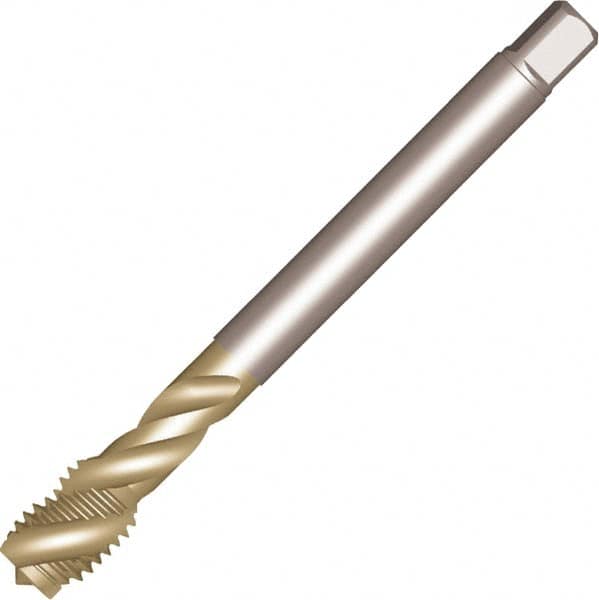

Sandvik Coromant - 1/4-19 G 3 Flute Modified Bottoming Spiral Flute Tap - Powdered Metal, AlCrN Finish, 100mm OAL, Right Hand Flute, Right Hand Thread, H6, Series CoroTap 300
Item #: 49379654
Brand: Sandvik Coromant
Model #: 6635227
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/4-19 |
| Chamfer | Modified Bottoming |
| Thread Limit | H6 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | AlCrN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Helix Angle | 45 |
| Thread Standard | G |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Flute Type | Fast Spiral |
| Series/List | CoroTap 300 |
| Neck Length (Decimal Inch) | 2.2047 |
| Tapping Depth (Decimal Inch) | 2.7953 |
| Tapping Depth (mm) | 71.00 |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Shank Diameter (mm) | 11.00 |
