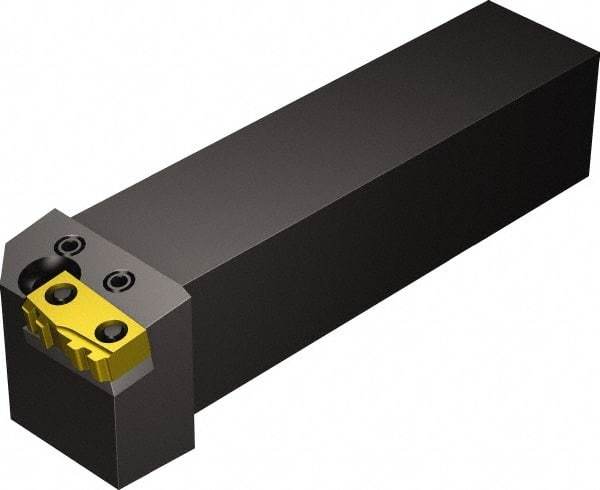

Sandvik Coromant - External Thread, Right Hand Cut, 32mm Shank Width x 32mm Shank Height Indexable Threading Toolholder - 148.4mm OAL, R166.39G-24.. Insert Compatibility, R166.39FG Toolholder, Series T-Max Twin-Lock
Item #: 49378888
Brand: Sandvik Coromant
Model #: 5742340
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (Decimal Inch) | 5.8425 |
| Overall Length (mm) | 148.40 |
| Insert Compatibility | R166.39G-24.. |
| Series | T-Max Twin-Lock |
| Toolholder Style | R166.39FG |
| Through Coolant | No |
| Multi-Use Tool | No |
| Back of Bar to Cutting Edge (mm) | 38.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5197 |
| Head Length (mm) | 24.90 |
| Head Length (Decimal Inch) | 0.9803 |
| Toolholder Material | Steel |
