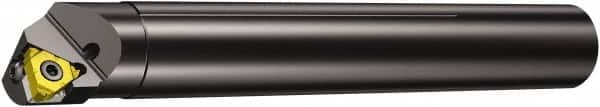

Sandvik Coromant - Internal Thread, Left Hand Cut, 3/8" Shank Width x 23/64" Shank Height Indexable Threading Toolholder - 6" OAL, Various Insert Compatibility, L166.0L Toolholder, Series T-Max U-Lock 166
Item #: 49378748
Brand: Sandvik Coromant
Model #: 5734468
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 23/64 |
| Shank Height (Decimal Inch) | 0.3594 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | L166.0L-11MM01-050; L166.0L-11MM01-075; L166.0L-11MM01-100; L166.0L-11MM01-125; L166.0L-11MM01-150; L166.0L-11MM01-175; L166.0L-11MM01-200; L166.0L-11UN01-140; L166.0L-11UN01-160; L166.0L-11UN01-180; L166.0L-11UN01-200; L166.0L-11UN01-240; L166.0L-11UN01- |
| Series | T-Max U-Lock 166 |
| Toolholder Style | L166.0L |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.2950 |
| Neck Diameter (Decimal Inch) | 0.3750 |
| Head Length (mm) | 22.35 |
| Head Length (Decimal Inch) | 0.8799 |
| Shank Length (Decimal Inch) | 5.1201 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Pitch Range | 32 - 12 |
| Toolholder Material | Steel |
