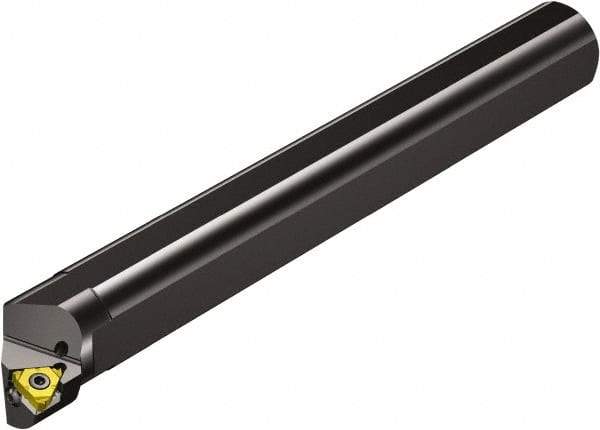

Sandvik Coromant - Internal Thread, Right Hand Cut, 20mm Shank Width x 18mm Shank Height Indexable Threading Toolholder - 9.8425" OAL, Various Insert Compatibility, 266.RL Toolholder, Series CoroThread 266
Item #: 49378722
Brand: Sandvik Coromant
Model #: 5758032
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 18.00 |
| Shank Height (Decimal Inch) | 0.7087 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | 266RL-16AC01F080E; 266RL-16AC01F100E; 266RL-16AC01F120E; 266RL-16AC01F140E; 266RL-16AC01F160E; 266RL-16MM01A050M; 266RL-16MM01A075M; 266RL-16MM01A100M; 266RL-16MM01A125M; 266RL-16MM01A150M; 266RL-16MM01A175M; 266RL-16MM01A200M; 266RL-16MM01A250M; 266RL-16 |
| Series | CoroThread 266 |
| Toolholder Style | 266.RL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 14.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5512 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Head Length (Decimal Inch) | 1.1417 |
| Shank Length (Decimal Inch) | 8.7008 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Minimum Bore Diameter (Decimal Inch) | 0.9844 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Pitch Range | 64 - 8 |
| Toolholder Material | Steel |
