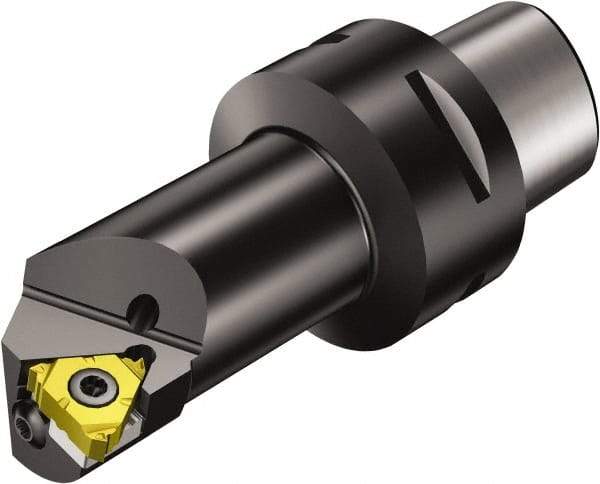

Sandvik Coromant - Insert Style Cx-266R/LKF, 105mm Head Length, Left Hand Cut, External Modular Threading Cutting Unit Head - System Size C5, 26.9mm Center to Cutting Edge, Series CoroThread 266
Item #: 49378383
Brand: Sandvik Coromant
Model #: 5728971
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroThread 266 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 26.90 |
| Center to Cutting Edge (Decimal Inch) | 1.0591 |
| Head Length/Projection (mm) | 105.00 |
| Head Length/Projection (Decimal Inch) | 4.1339 |
| Insert Style | Cx-266R/LKF |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Radial Rake Angle | -15 |
