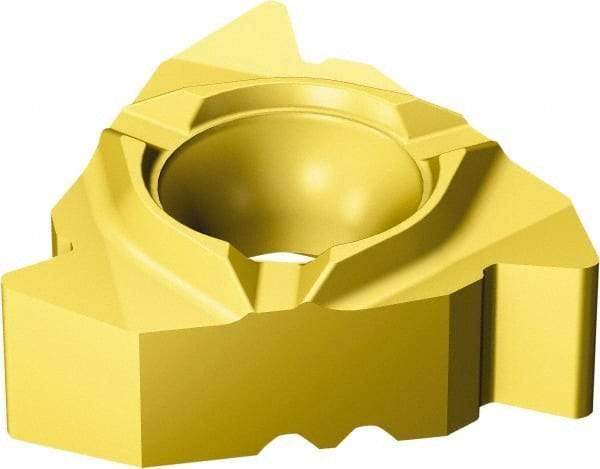

Sandvik Coromant - 26622 A Grade 1020, Internal Partial Profile 60° Threading Insert - 3.5 to 60mm & 4 to 7 TPI Int Pitch, Left Hand Insert, Carbide
Item #: 49377617
Brand: Sandvik Coromant
Model #: 5757860
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 22 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Manufacturer's Grade | 1020 |
| Internal Pitch/TPI | 3.50-6.00 mm; 4-7 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266LL22VM01A001M1020 |
| Corner Radius (mm) | 0.26 |
| Corner Radius (Decimal Inch) | 0.0102 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5757860 |
