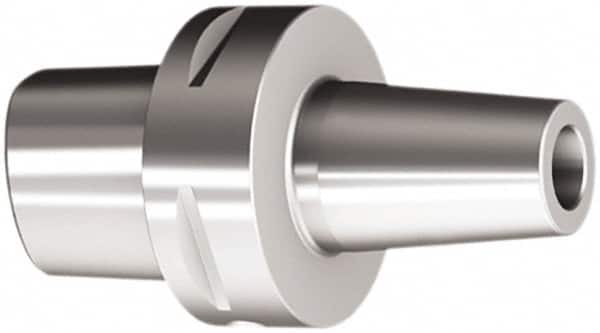

Sandvik Coromant - 16mm Hole Diam, C8 Modular Connection Shrink Fit Tool Holder & Adapter - 95mm Projection, 27mm Nose Diam, 65mm Clamping Depth, Through Coolant
Item #: 49350929
Brand: Sandvik Coromant
Model #: 6070105
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Projection (mm) | 95.00 |
| Projection (Decimal Inch) | 3.7402 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 65.00 |
| Clamping Depth (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6299 |
| Balanced to (RPM) | 0 |
