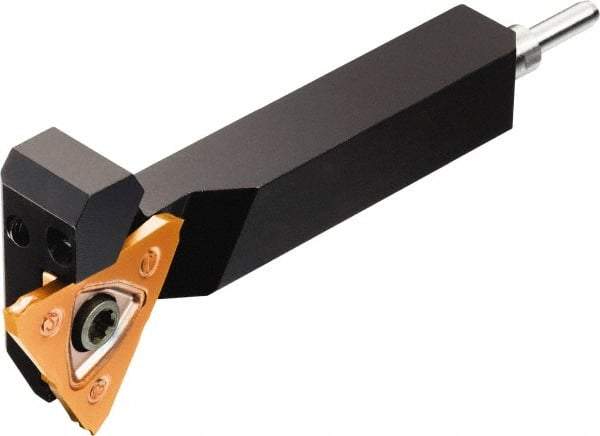

Sandvik Coromant - QS, External, Right Hand, 6.4mm Max Depth of Cut, Indexable Grooving Tool Holder - N123T3-0150-CM Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 70mm OAL, Through Coolant
Item #: 49348519
Brand: Sandvik Coromant
Model #: 6010198
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Maximum Depth of Cut (mm) | 6.40 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QS |
| Insert Compatibility | N123T3-0150-CM |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | CoroCut 3 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | T |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6010198 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123T3-0150- CM |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
