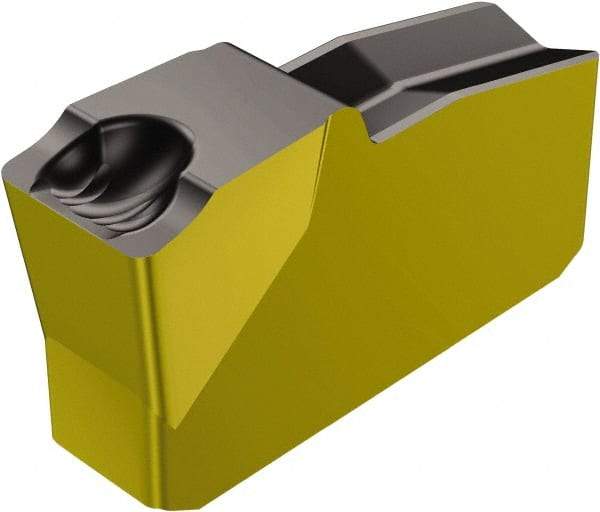

Sandvik Coromant - 20020N151.2 5G Grade 4225, 2mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49347859
Brand: Sandvik Coromant
Model #: 5737165
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 20020 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 4225 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 20 |
| Chipbreaker | 5G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N1512200205G4225 |
| Manufacturers Catalog Number | 5737165 |
| Insert Thickness (Decimal Inch) | 0.2213 |
| Insert Thickness (mm) | 5.6200 |
