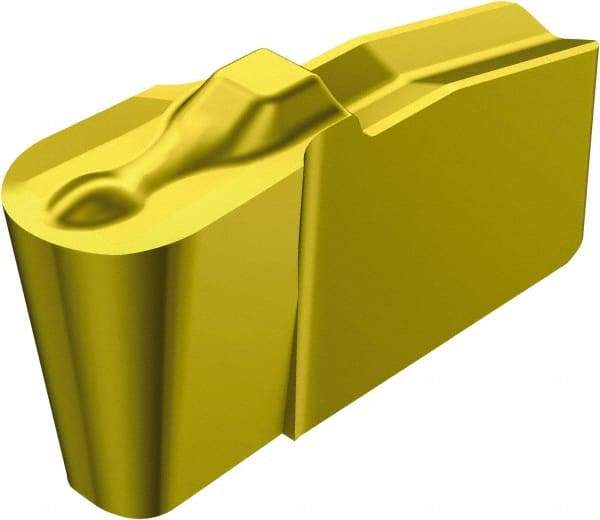

Sandvik Coromant - 50N151.2 4U Grade 235, 6mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, 3mm Corner Radius, TiCN/TiN Finish
Item #: 49347487
Brand: Sandvik Coromant
Model #: 5738175
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 50 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 50 |
| Chipbreaker | 4U |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N1512600504U235 |
| Manufacturers Catalog Number | 5738175 |
| Insert Thickness (Decimal Inch) | 0.3193 |
| Insert Thickness (mm) | 8.1100 |
