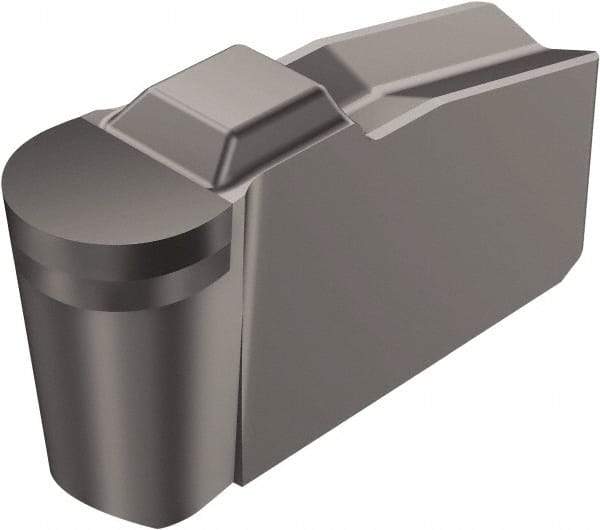

Sandvik Coromant - 30N151.2-A..F-P Grade CD10, Carbide Grooving Insert - 1.27mm Max Depth of Cut, Neutral, 1.59mm Corner Radius, Uncoated
Item #: 49346554
Brand: Sandvik Coromant
Model #: 5736806
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-A..F-P |
| Insert Size | 30 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 1.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0626 |
| Series | T-Max Q-Cut |
| Manufacturers Catalog Number | 5736806 |
