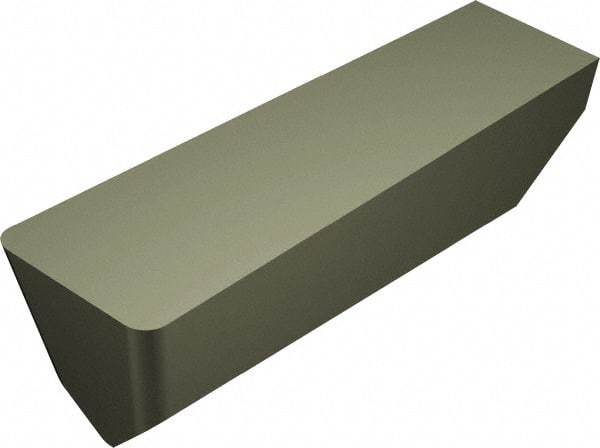

Sandvik Coromant - 0635150.23 T Grade 670, 6.35mm Cutting Width Carbide Grooving Insert - Neutral, 0.79mm Corner Radius, Uncoated
Item #: 49346315
Brand: Sandvik Coromant
Model #: 5757134
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 150.23 |
| Insert Size | 0635 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | 670 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 11 |
| Insert Seat Size | 3 |
| Chipbreaker | T |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Series | T-Max |
| ISO Number | 15023063508T01020670 |
| Manufacturers Catalog Number | 5757134 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (mm) | 6.3500 |
