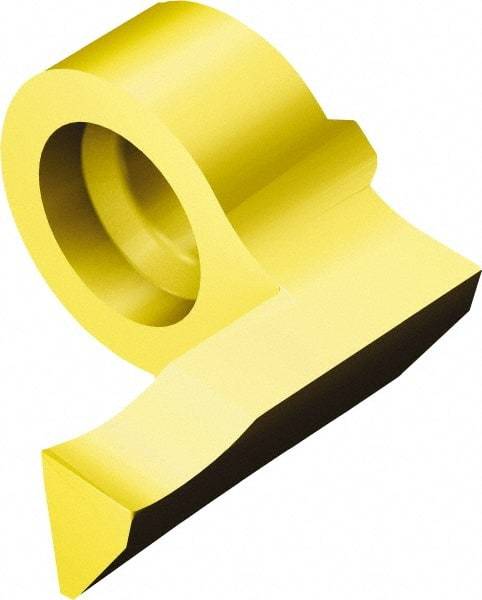

Sandvik Coromant - 11MB Grade 1025, 3mm Cutting Width Carbide Grooving Insert - 10mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiAlN/TiN Finish
Item #: 49345648
Brand: Sandvik Coromant
Model #: 6350716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 11 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 90 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 16.60 |
| Overall Length (Decimal Inch) | 0.6535 |
| Series | CoroCut MB |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | MB11FA3000216R1025 |
| Manufacturers Catalog Number | 6350716 |
