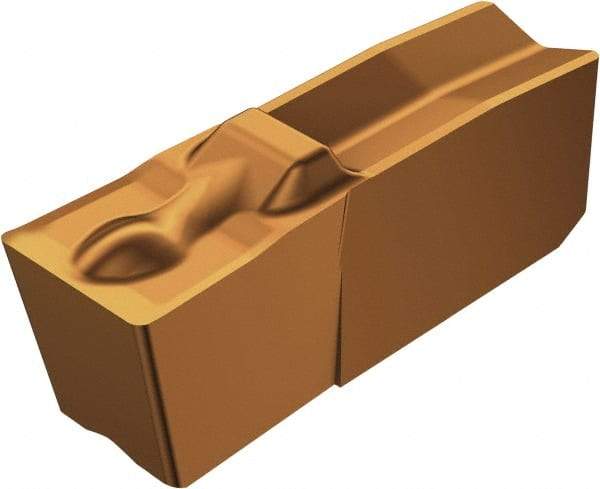

Sandvik Coromant - 15640N151.3 4G Grade 1145, 3.96mm Cutting Width Carbide Grooving Insert - Neutral, 0.18mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 49345580
Brand: Sandvik Coromant
Model #: 5737924
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 15640 |
| Material | Carbide |
| Cutting Width (mm) | 3.96 |
| Cutting Width (Decimal Inch) | 0.1559 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 11 |
| Insert Seat Size | 40 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.18 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating Process | PVD |
| Series | T-Max Q-Cut |
| ISO Number | N1513A156404G1145 |
| Manufacturers Catalog Number | 5737924 |
| Insert Thickness (Decimal Inch) | 0.2406 |
| Insert Thickness (mm) | 6.1100 |
