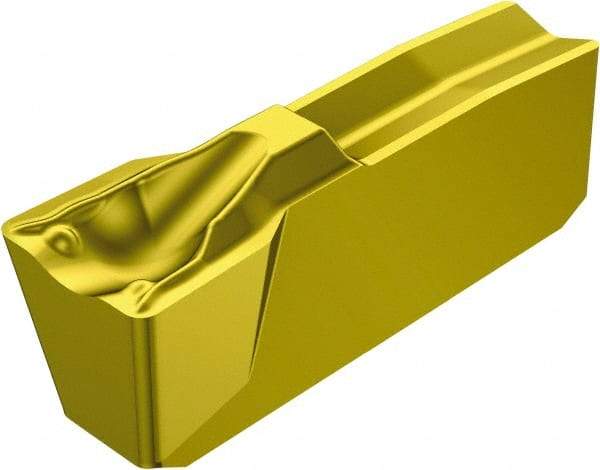

Sandvik Coromant - 60050N151.3 7G Grade 2135, 6mm Cutting Width Carbide Grooving Insert - Neutral, 0.4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49345168
Brand: Sandvik Coromant
Model #: 5737034
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 60050 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 11 |
| Insert Seat Size | 50 |
| Chipbreaker | 7G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N1513600507G2135 |
| Manufacturers Catalog Number | 5737034 |
| Insert Thickness (Decimal Inch) | 0.2406 |
| Insert Thickness (mm) | 6.1100 |
