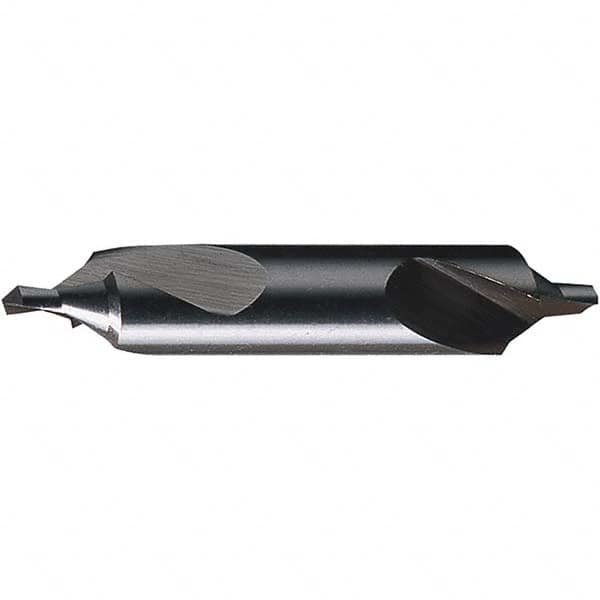

Chicago-Latrobe - #11 Bell Cut 60° Bell Incl Angle High Speed Steel Combo Drill & Countersink
Item #: 87976775
Brand: Chicago-Latrobe
Model #: 56761
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | High Speed Steel |
| Included Angle | 60 Bell |
| Trade Size | #11 |
| Body Diameter (mm) | 3.18 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 31.75 |
| Overall Length (Decimal Inch) | 1.2500 |
| Drill Point Diameter (Decimal Inch) | 0.0469 |
| Drill Point Diameter (mm) | 1.19 |
| Drill Point Diameter (Inch) | 3/64 |
| Finish/Coating | Bright |
| End Type | Double |
| Cutting Direction | Right Hand |
| Cutting Edge Style | Bell |
| Drill Point Length (mm) | 1.19 |
| Drill Point Length (Decimal Inch) | 0.0469 |
| Bell Diameter (Decimal Inch) | 0.1250 |
| Countersink Application | Countersinking; Drilling |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Alloy Steel; Carbon Steel; Cast Iron; Tool Steel |
| Series/List | 217B |
