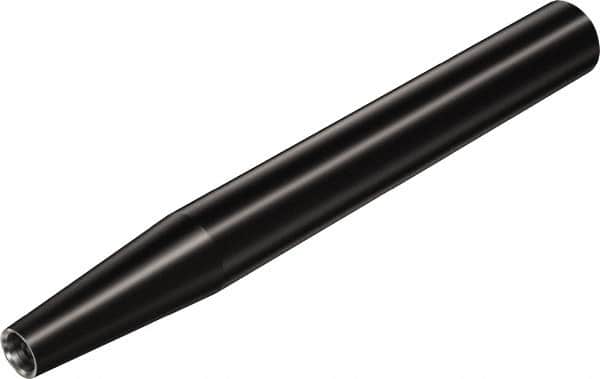

Sandvik Coromant - CoroMill 316 16mm Straight Shank Milling Tip Insert Holder & Shank - 170mm Projection, 0.4567" Neck Diam, 11.6mm Nose Diam, 170mm OAL, Steel Exx-Axx-CS Tool Holder
Item #: 49336381
Brand: Sandvik Coromant
Model #: 5732627
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Projection (mm) | 170.00 |
| Projection (Decimal Inch) | 6.6929 |
| Neck Diameter (Decimal Inch) | 0.4567 |
| Nose Diameter (mm) | 11.60 |
| Nose Diameter (Decimal Inch) | 0.4567 |
| Toolholder Material | Steel |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 2.3622 |
| Maximum Diameter (mm) | 11.60 |
| Maximum Diameter (Decimal Inch) | 0.4567 |
| Shank Material | Steel |
| Toolholder Style | Exx-Axx-CS |
