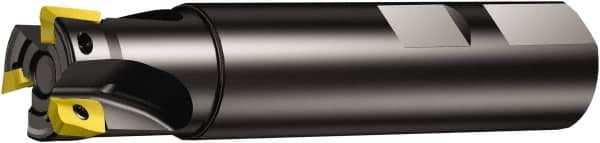

Sandvik Coromant - 25mm Cut Diam, 15.7mm Max Depth of Cut, 25mm Shank Diam, 88mm OAL, Indexable Square Shoulder End Mill - R390-17 04 04M-PM, R390-17 04 08E-PL, R390-17 04 08M-PL Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 49336092
Brand: Sandvik Coromant
Model #: 5745457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length/Projection (mm) | 88.00 |
| Overall Length/Projection (Decimal Inch) | 3.4646 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R390-025B25-17L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2598 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-17 04 04M-PM; R390-17 04 08E-PL; R390-17 04 08M-PL |
| Shank Length (Decimal Inch) | 2.2047 |
| Maximum RPM | 30800 |
| Toolholder Material | Steel |
