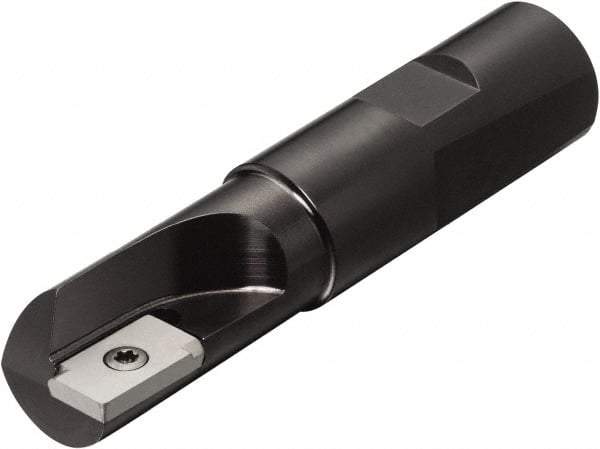

Sandvik Coromant - 3/4" Cut Diam, 15mm Max Depth of Cut, 3/4" Shank Diam, 3-1/2" OAL, Indexable Square Shoulder End Mill - R216.2-17 03 08-1 235, R216.2-17 03 08-1 HM, R216.2-17 03 08-1 SM30 Inserts, Weldon Shank, 90° Lead Angle, Series U-Max
Item #: 49335995
Brand: Sandvik Coromant
Model #: 5742809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Inch) | 3-1/2 |
| Overall Length/Projection (Decimal Inch) | 3.5000 |
| Lead Angle | 90 |
| Series | U-Max |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R216.2-319 |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.4690 |
| Weldon Flat | Yes |
| Insert Compatibility | R216.2-17 03 08-1 235; R216.2-17 03 08-1 HM; R216.2-17 03 08-1 SM30 |
| Shank Length (Decimal Inch) | 2.0310 |
| Maximum RPM | 15120 |
| Toolholder Material | Steel |
